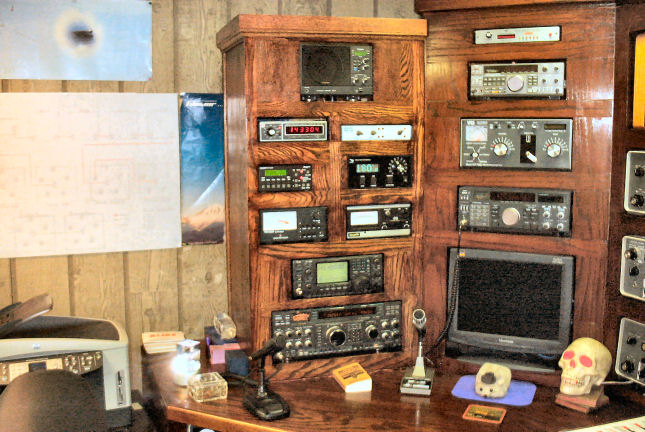

A New Wing Added

Collins gray Console

Top Left to Right

Computer monitor in center
Monitor Scope can select any radio from either console
and monitor both incoming and outgoing signals.

Two Magnum Six Speech Processors, side by side.
Collins Dummy Load.
Eight Ameritron RCS-8V's used to select any operating position and any radio or
transmitter to any antenna among five seperate operating positions of which two
are the main consoles in the picture.
Top row of radios.
SB-230 Heathkit Linear, SB-614 monitor scope, SB-634 Station Control unit
SB-104A Digital solidstate transceiver, SB-644A Remote VFO.
Center row
30L-1 Linear, KWM2-A transceiver, 312B-5 Remote VFO and station control unit
75S-3B Receiver, 51S-1 General coverage receiver Bottom row, 30L-1 Linear
32S-3A Transmitter, 312B-4 Station control, 75S-3C Receiver
51S-1 General coverage receiver
To the left of the console on the floor is the Collins 30S-1 linear

Oak Console

On the desk top far left to right

FT-1000D IC-746, PW-3000 in line Watt Meter and SWR Bridge
to the right of that is the Ham V control for the 2 meter quad
Above that and left is the SteppIR MonstIR control box
And right of that is the Green Heron Engineering RT-20
Which rotates the M2 Orior.
Above that and left is the Spectronics DD-1C digital display for the Collins
And to the right of that is the US Tower RMC-1000 remove control unit
to raise and lower my tower.
Above that is the SP-5 with the Timewave DSP-59Y.

Left wing to top of desk

Two digital atomic clocks set to local and Zulu time.
MFJ-1278 for Packett. Kenwood R-5000 general coverage LF, HF & VHF.
Vechtronics HFT-1500 Antenna Tuner Kenwood. TS-790A VHF & UHF Transceiver.
ViewSonic 17" Flat Screen Tied to computer under left side of console.

Center of Console

Panel of power switches controlling whisper fans.
Left Side Speaker Kenwood SM-220 Monitor scope.
Collins 75S-3B Receiver 312B4 Station console
32S3 Transmitter Collins KWM-2A, 312B-5 remote VFO and station console.
30L-1 Linear 75S-3C Receiver 312B4 Station Console 32S3 Transmitter

Right wing to top of desk

Mitsubishi VCR, Sony VCR, Pioneer cassette deck.
Pioneer Laser disk player & DVD, Pioneer tuner.
ViewSonic 17" Flat Screen tied to computer under console on right side.

TV monitor, HP Laserjet 6L, Collins SM-3 microphone

Under the console left side

Collins 30S-1 Linear Amp.

Under the console right side

Collins 30S1 Linear Amp. IBM 1200Mhz computer.
IBM 1200Mhz computer Main base of Henry 2K classic.

Not shown in operating position 3 A Collins KWM-2 Transceiver.
312B-5 remote VFO and station console, 30L-1 Linear, and Icom-746
Not shown in operating position 4 is a Collins KWM-2 Transceiver in a Collins CC-1 case.
Not shown is operating position seven, SB-102, SB-630, SB-200

My car has the FT-100D with the the Tarheel 1 Antenna and the AMAC Controller.
The antenna covers all bands except for 160 and 2 meters.

QTH Antenna's

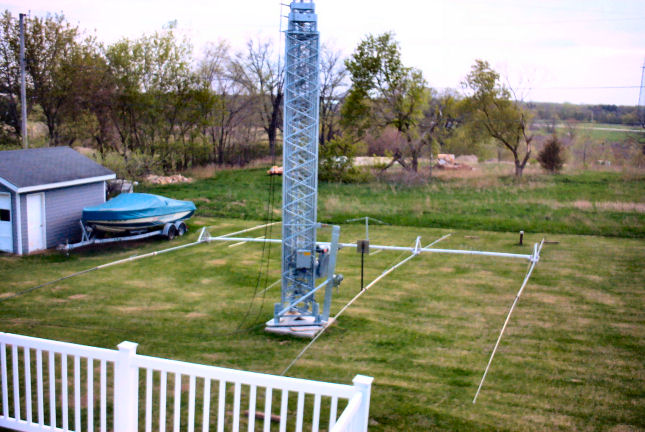

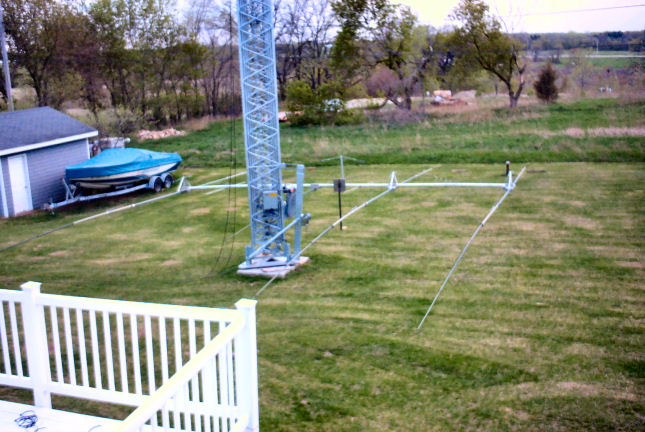

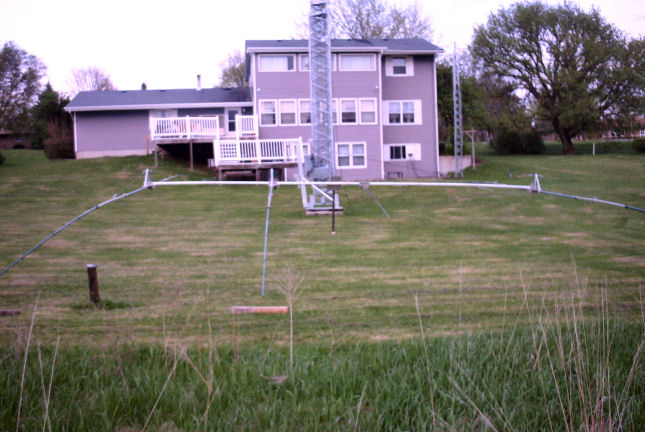

US Tower HDX-5106 with a 20 Foot mast set in the M2 Orion Rotor.

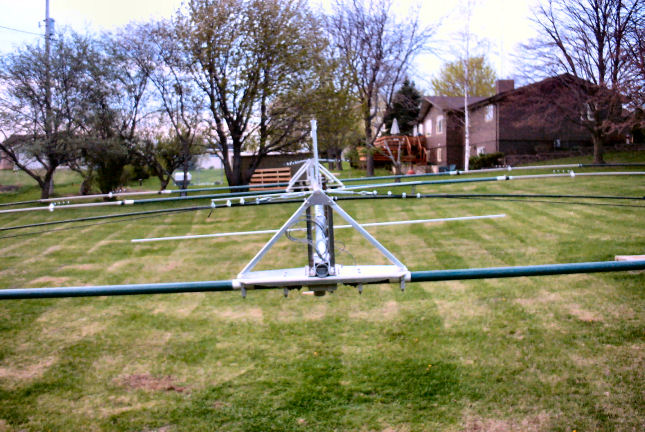

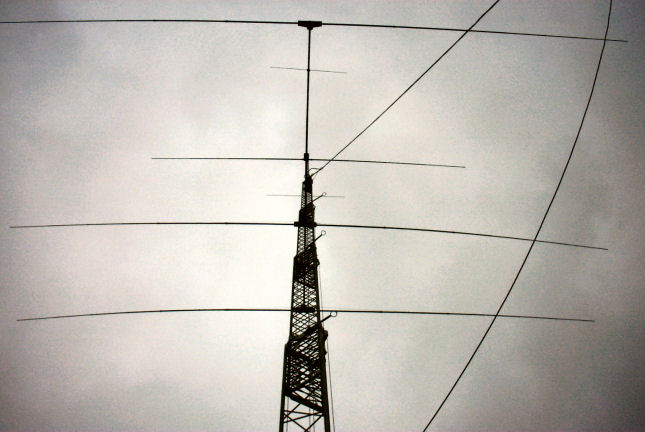

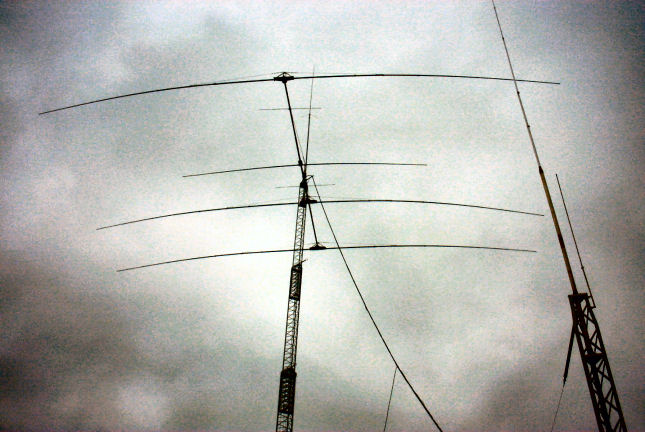

My HF beam is the SteppIR MonstIR from Fluid Motion.
Also sharing the 20 foot mast is a 3 Band VHF, UHF Stick.

There is also a Hy-gain 18ht Hy-Tower which covers all HF bands including 160 and 80 Meters.

Over the house and sixty feet up is A VHF six element quad rotated with a Ham IV.
